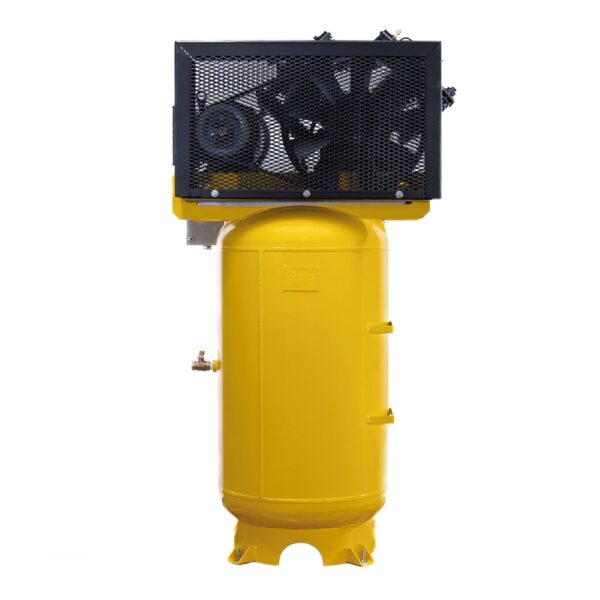

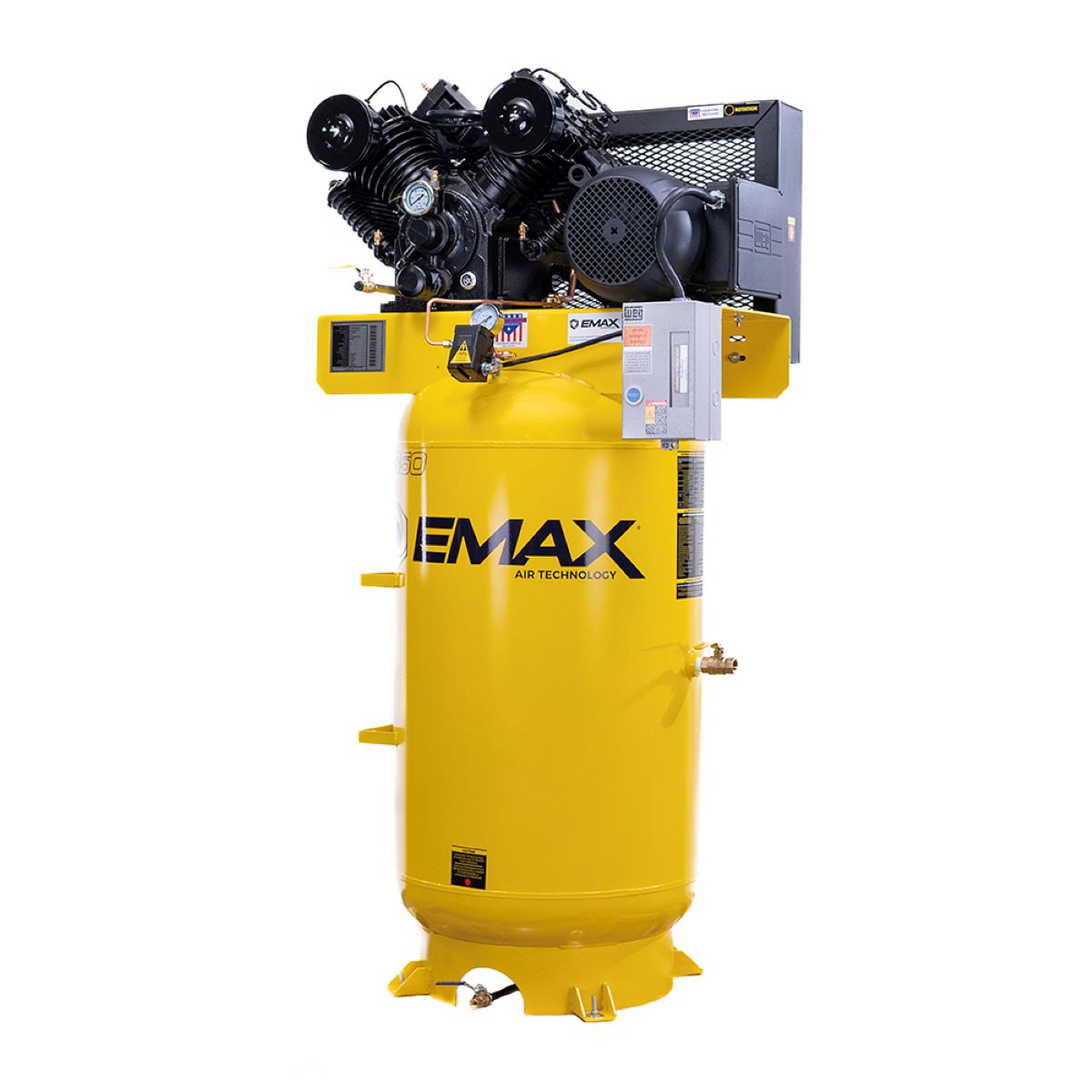

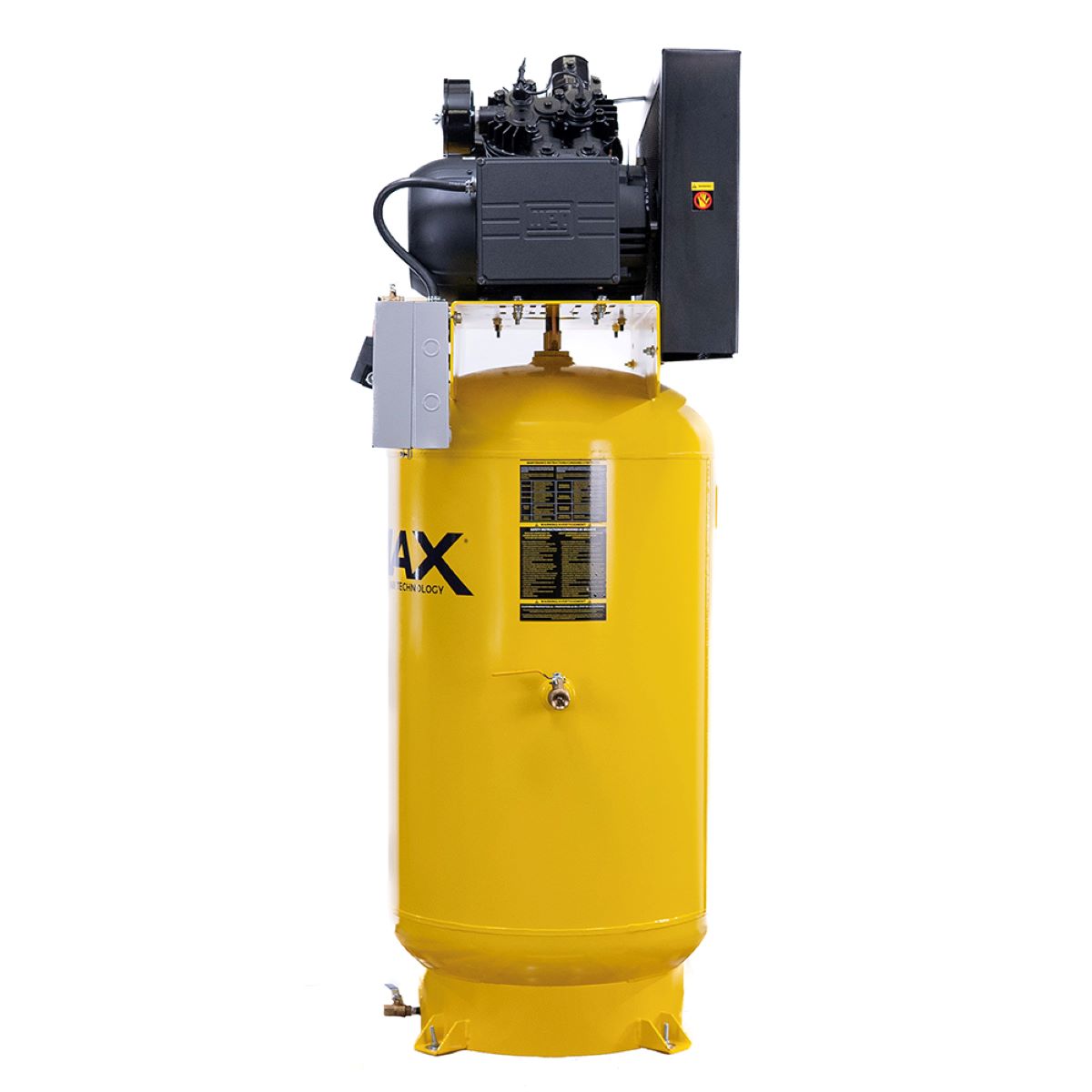

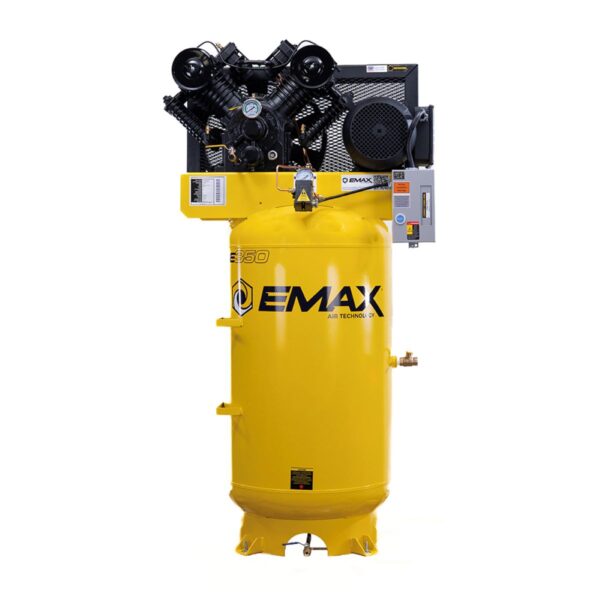

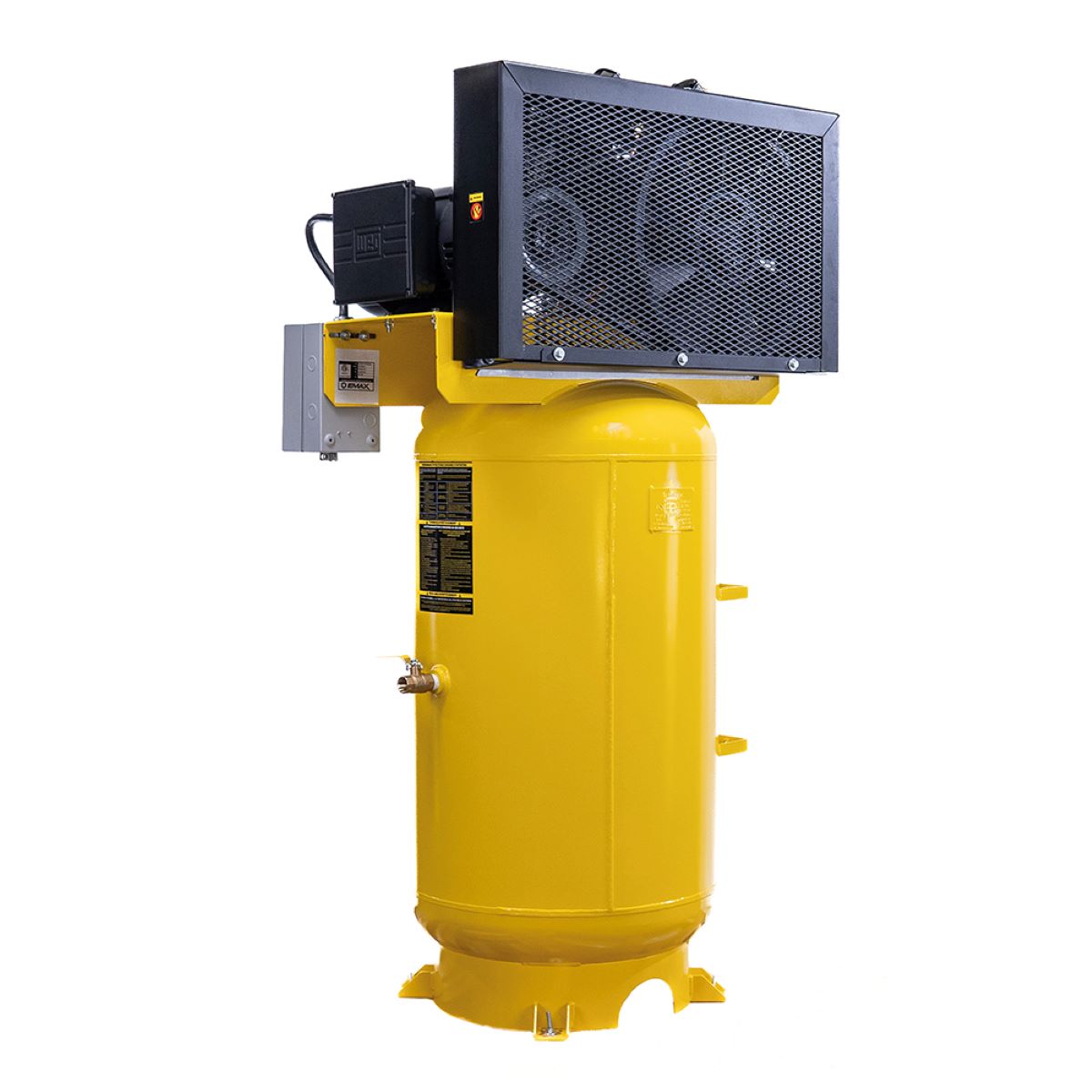

EI10V080V1 EMAX Industrial 10 HP 1-Phase 80 gal. Vertical Industrial Electric Air Compressor

$7,899.00

Availability: 3 in stock

SKU: EI10V080V1 Category:

EMAX Industrial 10 HP 2 Stage Pressure Lubricated Inline, 1 Phase vertical 80 gal. Piston Air Compressor is designed for up to 60,000 hours! This unit delivers 38CFM @ 100 PSI, top PSI of 175. Our unit features industrial Grade electric motors, condor pressure switch, manual extended ball valve tank drain, all installed on our powder coated ASME 200PSI rating tank.

  • Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run
  • Built in inner-cooler and after cooler
  • Solid cast iron crankcase with oil sight glass– NOT Aluminum
  • Industrial-duty, 1750 RPM (not 3450 RPM) name brand motor – UL & CSA
  • Magnetic starter
  • Spin-on oil filter
Weight 330 kg
Dimensions 122 × 117 × 211 cm
CFM

38 @ 100PSI

MAX PSI

175

PUMP RPM

800

VOLTAGE

Single Phase 208/230

RUNNING AMPS

40

TANK DRAIN TYPE

Manual Valve

TANK OUTLET SIZE

3/4 Inch

TANK SIZE

80 Gallon
